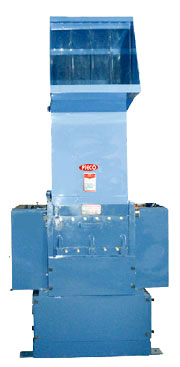

Granulator 500
 |
||||
| Model | PCF - 500 | PCF - 500/5 | PCR – 500 | PSTG - 500 |
| Length of Blades | 500 mm | 500 mm | 500 mm | 166mm-9 500 mm-2 |
| No. of Blades | 4 | 5 | 6 | 11 |
| Throat Size | 500 x 500 mm | 500 x 500 mm | 500 x 500 mm | 500 x 500 mm |
| Grinding Capacity | 160 Kgs/Hr. | 170 Kgs/Hr. | 175 Kgs/Hr. | 180 Kgs/Hr. |
| Power Required | 15HP (11.25 KW) | 15 HP (11.25 KW) | 15 HP (11.25 KW) | 15 HP (11.25 KW) |
| Suitable for grinding | Buckets upto 30 Ltrs, 20 ltrs containers, TV Cabinets, A.C. Frames. | Pipes upto dia 160 mm & Pet Bottles | Films,shoes, HIPS cups and sheets, Rafia bags | Pet performs, solid articles and lumps |
 |
 |
 |
 |
|
| *Note: Capacity depends on scrap size, shape, material & feeding condition. Insulation for sound reduction can be provided at an extra cost. |
||||
