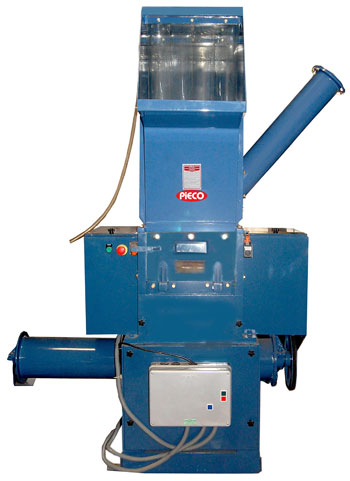

Wet Granulator
 |
| Model | PCF - 400/5/WET | PCF - 500/5/WET | PCF - 600/5/WET |
| Length of Blades | 400mm | 500mm | 630mm |
| No.of Blades | 5 | 5 | 5 |
| Throat Size | 400 x 400mm | 500 x 500mm | 600 x 630mm |
| Grinding Capacity | 80 TO 100Kg/hr | 120 to 130kg/hr | 180 to 200kg/hr |
| Power Required | 10HP (7.5KW) | 15HP (11.25KW) | 25HP (18.75KW) |
| Special Feature | 0.5 HP screw conveyor is provided to move the grinded material to the collecting bin and separate dirty water | 0.5 HP screw conveyor is provided to separate grinded material and water | Provided with 1HP screw conveyor to transfer the grinded material to bin & separate water from grinded material |
| Suitable for | Grinding(Crushing) & washing of PET Bottles HDPE Bottles & Jars etc in one step | Grinding(Crushing) & washing of PET Bottles HDPE Bottles & Jars etc in one step | Grinding(Crushing) & washing of PET Bottles HDPE Bottles & Jars etc in one step |
| * Note: Capacity depends on scrap size, shape, material & feeding condition. Insulation for sound reduction can be provided at an extra cost. |
|||
