Granulators
Slow-speed and heavy-duty granulators for efficient size reduction across all major plastic types. Available from 1 HP to 100 HP with output range 20–1000 kg/hr.
Read more
TECHNICAL DATA

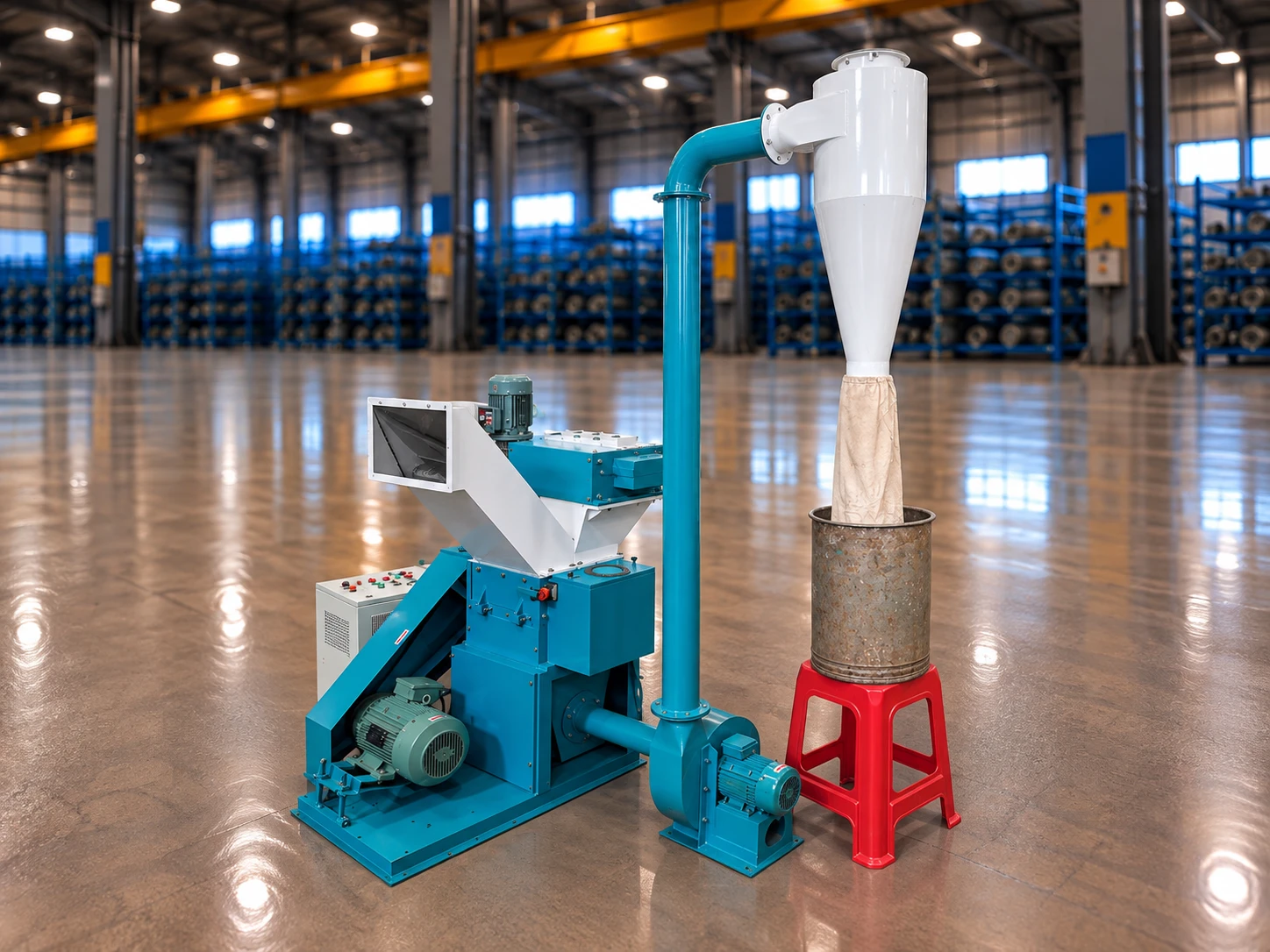

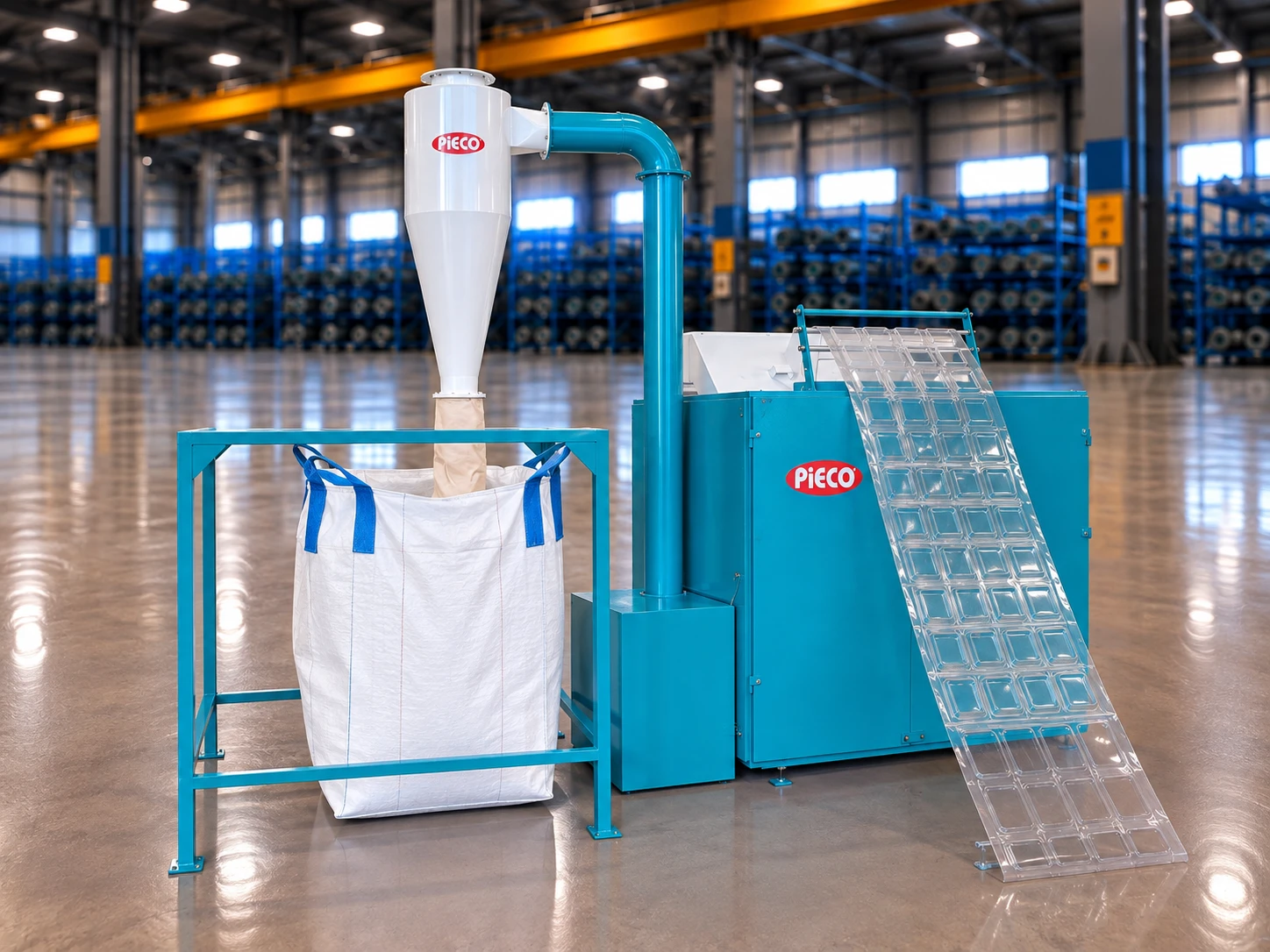

Online/Inline sheet feeding granulator for thermoforming scrap with auto feeding and no operator required.
PSF 600
| Length of Blade | 600mm |
| Mouth Size | 600mm |
| Power Required | 15 HP |
| Number of Blades | 3 - Rotating 2 - Stationery |
| Output | 100 to 125 Kgs/hr |
PSF 750
| Length of Blade | 700mm |
| Mouth Size | 750mm |
| Power Required | 20 HP |
| Number of Blades | 3 x 2 - Rotating 2 x 2 - Stationery |
| Output | 150 to 200 Kgs/hr |
PSF 800
| Length of Blade | 800mm |
| Mouth Size | 800mm |
| Power Required | 40 HP |
| Number of Blades | 3 x 2 - Rotating 2 x 2 - Stationery |
| Output | 300 to 400 Kgs/hr |
NOTE — Higher capacity models available on request.
