TECHNICAL DATA

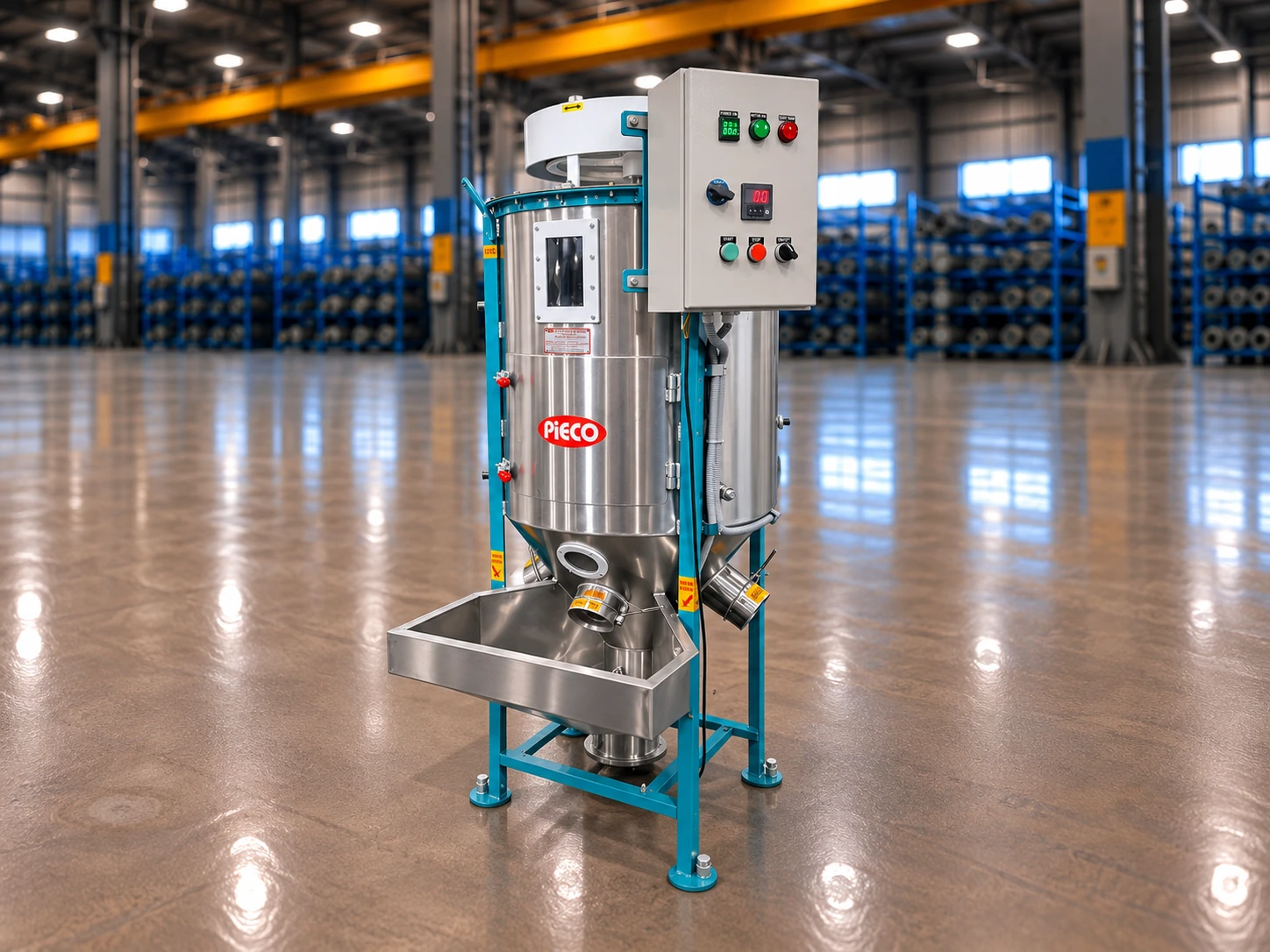

Designed for efficient vertical blending of plastic granules using screw-type agitation.
PVSM 100
Screw mixer suitable for mixing of plastic raw materials with master batches, re-grind etc.
| Mixing Capacity | 100 Kgs |
| Vessel Capacity | 110 Kgs |
| Power Required | 2 HP |
| Mixing Time | 10 to 15 Min |
| Control Panel | Timer up to 99 Mins |
| Material of Construction | M.S / S.S |
PVSM 250
Screw mixer suitable for mixing of plastic raw materials with master batches, re-grind etc.
| Mixing Capacity | 250 Kgs |
| Vessel Capacity | 260 Kgs |
| Power Required | 2 HP |
| Mixing Time | 10 to 15 Min |
| Control Panel | Timer up to 99 Mins |
| Material of Construction | M.S / S.S |
PVSM 500
Screw mixer suitable for mixing of plastic raw materials with master batches, re-grind etc.
| Mixing Capacity | 500 Kgs |
| Vessel Capacity | 550 Kgs |
| Power Required | 3 HP |
| Mixing Time | 20 to 25 Min |
| Control Panel | Timer up to 99 Mins |
| Material of Construction | M.S / S.S |
PVSM 1000
Screw mixer suitable for mixing of plastic raw materials with master batches, re-grind etc.
| Mixing Capacity | 1000 Kgs |
| Vessel Capacity | 1200 Kgs |
| Power Required | 3 HP |
| Mixing Time | 40 to 45 Min |
| Control Panel | Timer up to 99 Mins |
| Material of Construction | M.S / S.S |
Special Features
- Uniform mixing with no wastage
- Compact design
- Three side material drain
- Front window provided for inspection
- Overload thermal relay for motor protection
- Provided with Auto Stop timer
NOTE — Custom capacities and specifications available on request. Contact us for more details.
