Granulators
Slow-speed and heavy-duty granulators for efficient size reduction across all major plastic types. Available from 1 HP to 100 HP with output range 20–1000 kg/hr.
Read more
TECHNICAL DATA

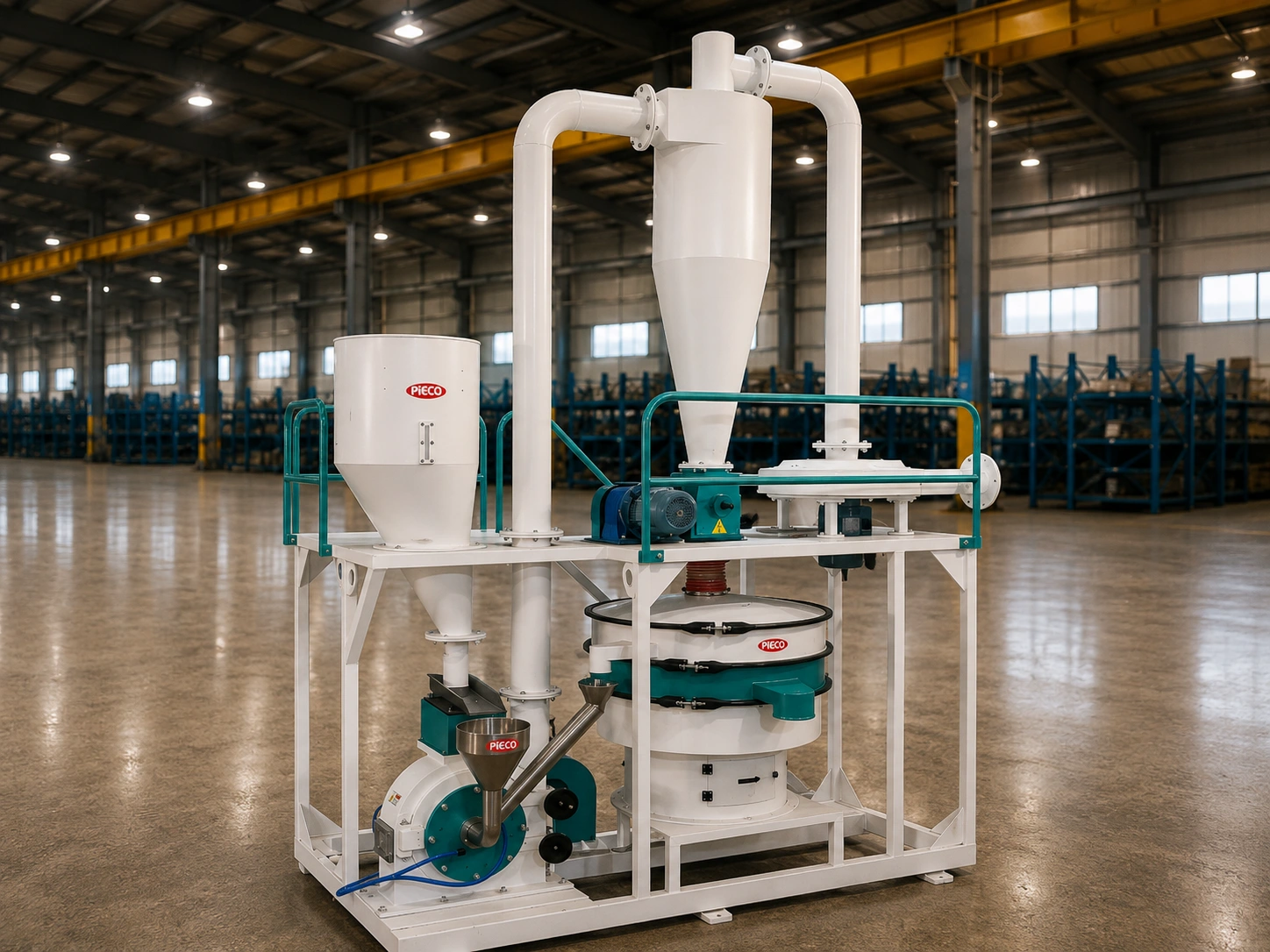

Pulverizer
High-speed pulverizer for fine grinding of plastic materials into powder.
PPULZ-300
| Disc Diameter | 300 MM |
| Main Motor | 20 HP |
| Output | 100 to 150 Kgs/hr |
PPULZ-400
| Disc Diameter | 400 MM |
| Main Motor | 40 HP |
| Output | 200 to 300 Kgs/hr |
PPULZ-600
| Disc Diameter | 600 MM |
| Main Motor | 75 HP |
| Output | 400 to 500 Kgs/hr |
NOTE — Output depends on material. Mid models also available on request.
Pulverizer Features.
Provided with Magnet to restrict entry of Metal parts feed in Mill.
Integrated Limit Switch provided for safety to prevent access until Rotor has reached a complete standstill.
Cooling system provided for controlling the temperature of Mill body.
Suction system provided with Blower, Cyclone, Separator, Rotary Valve, Motor & Gear Box.
All electrical units enclosed in powder coated Panel box having press button switches with Phase indicators, fuses & lockable main switch.
Vibro Screen having S.S. Screening Mesh
